System Architecture
Stelltron is a full-stack application spanning physical hardware, an IoT communication layer, a Go backend, a Next.js frontend, and four Soroban smart contracts on Stellar. Every layer has a defined contract with the layers above and below it.
High-Level Stack
| Layer | Technology | Role |
|---|---|---|
| Hardware | ESP32, 18650 Li-ion, relays | Measure and route physical energy |
| IoT Protocol | HTTP (REST), Server-Sent Events | Transport telemetry to backend |
| Backend | Go, Gin, GORM, PostgreSQL, Redis | Business logic, matching, pricing |
| Blockchain | Stellar Soroban (Rust/WASM) | Token settlement, governance |
| Frontend | Next.js, React, TailwindCSS | User interface |
| Hosting | Render (backend), Vercel (frontend) | Cloud deployment |
Full System Diagram

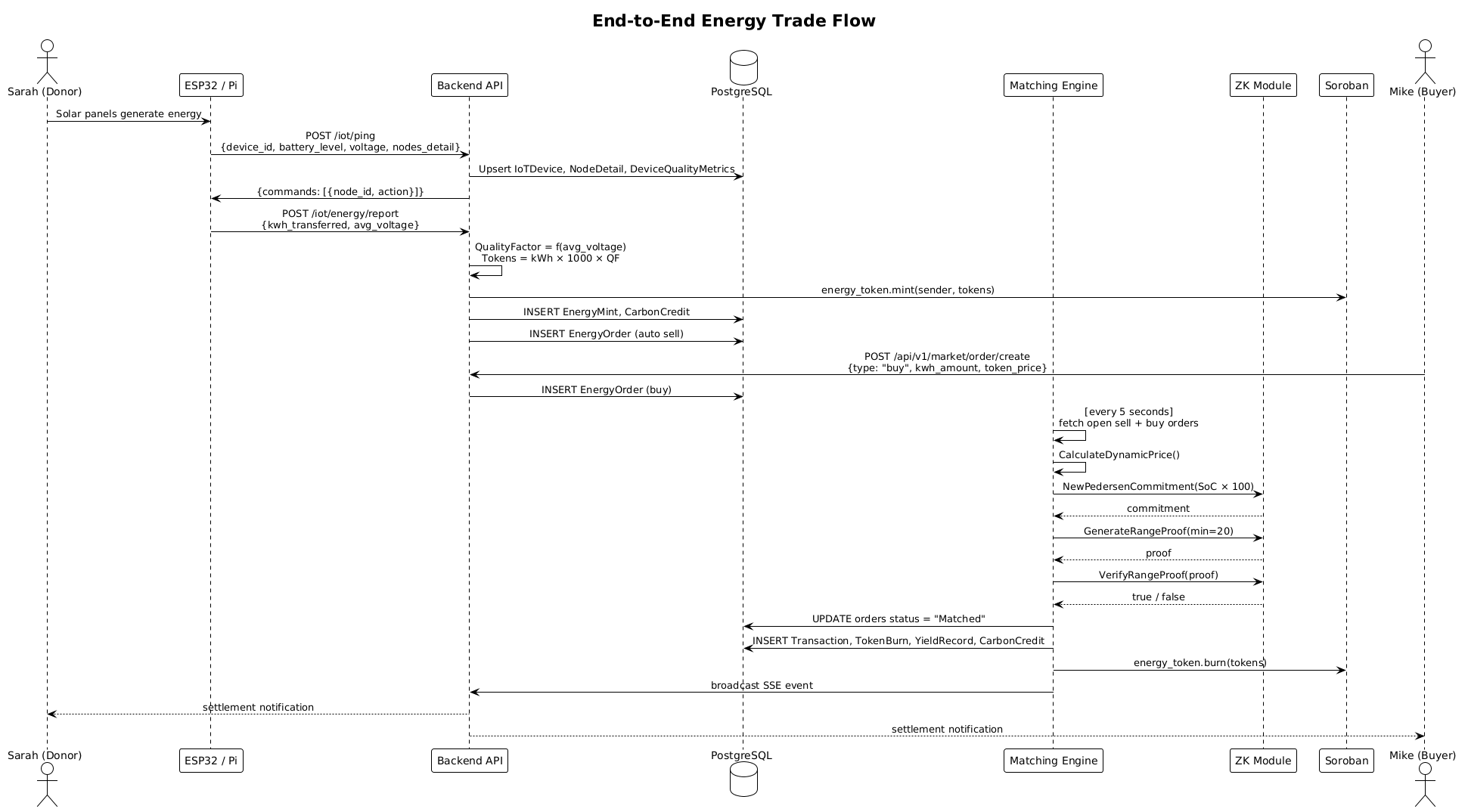

Data Flow: End-to-End Energy Trade

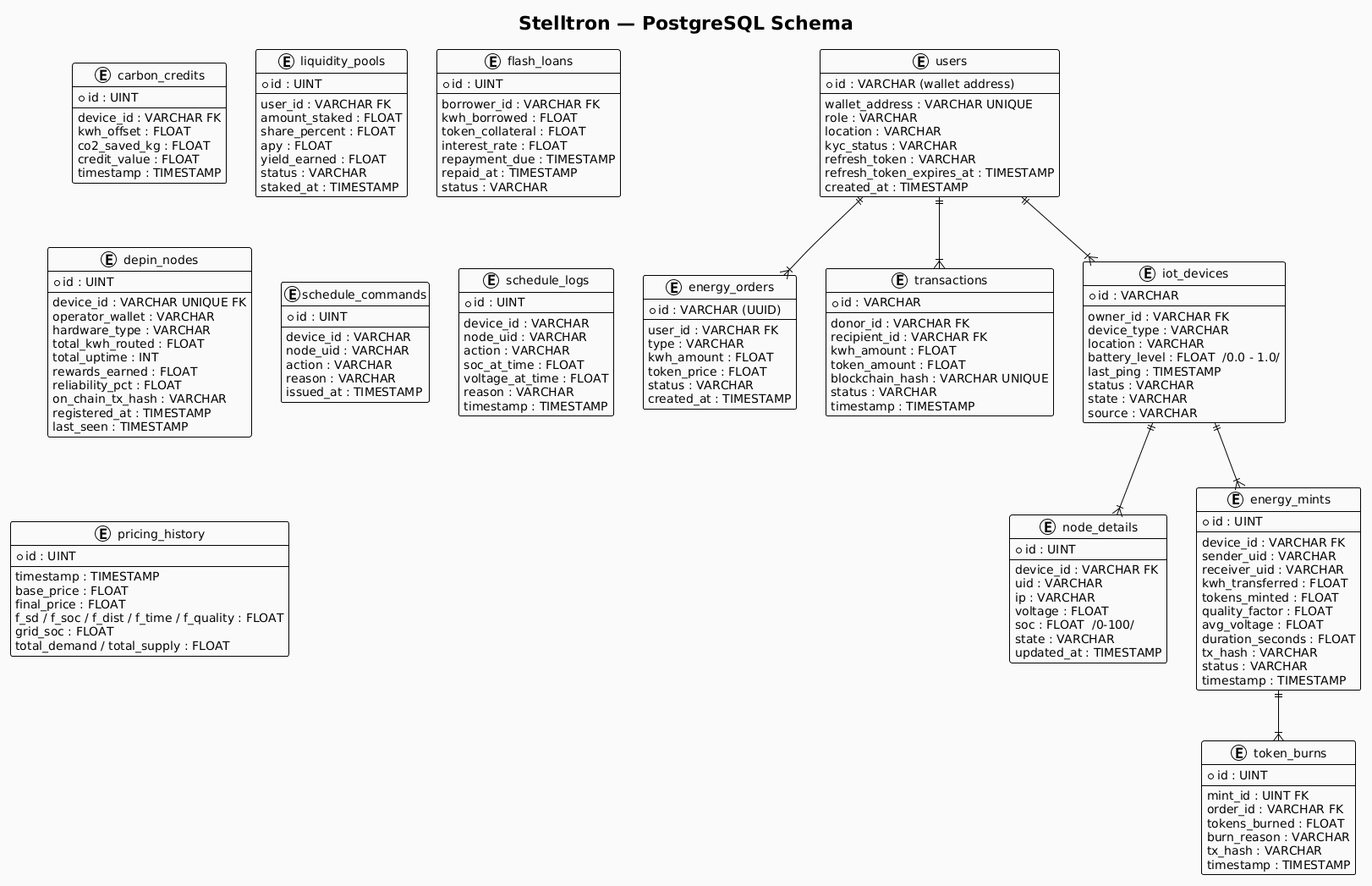

Database Schema
Component Responsibilities
Backend Package Structure
backend/
├── cmd/api/main.go Entry point, wires all components
├── internal/
│ ├── config/ Env var helpers
│ ├── cache/ Redis client singleton
│ ├── database/ GORM PostgreSQL setup + AutoMigrate
│ ├── core/domain/models.go All domain structs (17 models)
│ ├── handlers/ HTTP handlers (routes.go registers all 44 routes)
│ │ ├── handlers.go Auth, market, devices, analytics
│ │ ├── iot_ping.go IoT heartbeat + node data + SSE broker
│ │ ├── iot_cmd.go Scheduling endpoint
│ │ ├── iot_transfer.go Manual transfer commands
│ │ ├── energy_mint.go Token minting from energy reports
│ │ ├── defi.go LP staking, flash loans
│ │ ├── ledger.go Transparency endpoints
│ │ ├── depin.go DePIN node registry
│ │ ├── middleware.go JWT auth middleware
│ │ └── requests.go Request struct definitions
│ ├── matching/engine.go Order matching loop (every 5s)
│ ├── pricing/dynamic_engine.go Six-factor pricing model
│ ├ ── scheduling/scheduler.go Grid SoC-based command scheduling
│ ├── zk/commitment.go Pedersen commitments + range proofs
│ ├── blockchain/soroban.go Soroban client wrapper
│ └── mqtt/client.go MQTT command dispatch
