IoT Layer

The physical layer consists of ESP32 microcontrollers managing actual battery-to-battery energy transfer, orchestrated by a Raspberry Pi 4B acting as a local edge gateway. The Pi handles bidirectional communication between the hardware relay circuit and the cloud backend.

---

Hardware Stack

Component	Role
Raspberry Pi 4B	Edge gateway — runs Python control script, talks to backend
ESP32 microcontroller	Relay control, voltage/SoC sensing, TCP socket server
18650 Li-ion batteries	Energy storage nodes
5V Boost Converter	Steps up battery voltage for transmission
TP4056 Charger Module	Charges receiving battery
Relay × 2 per node	GPIO-controlled SUPPLY and RECEIVE paths

---

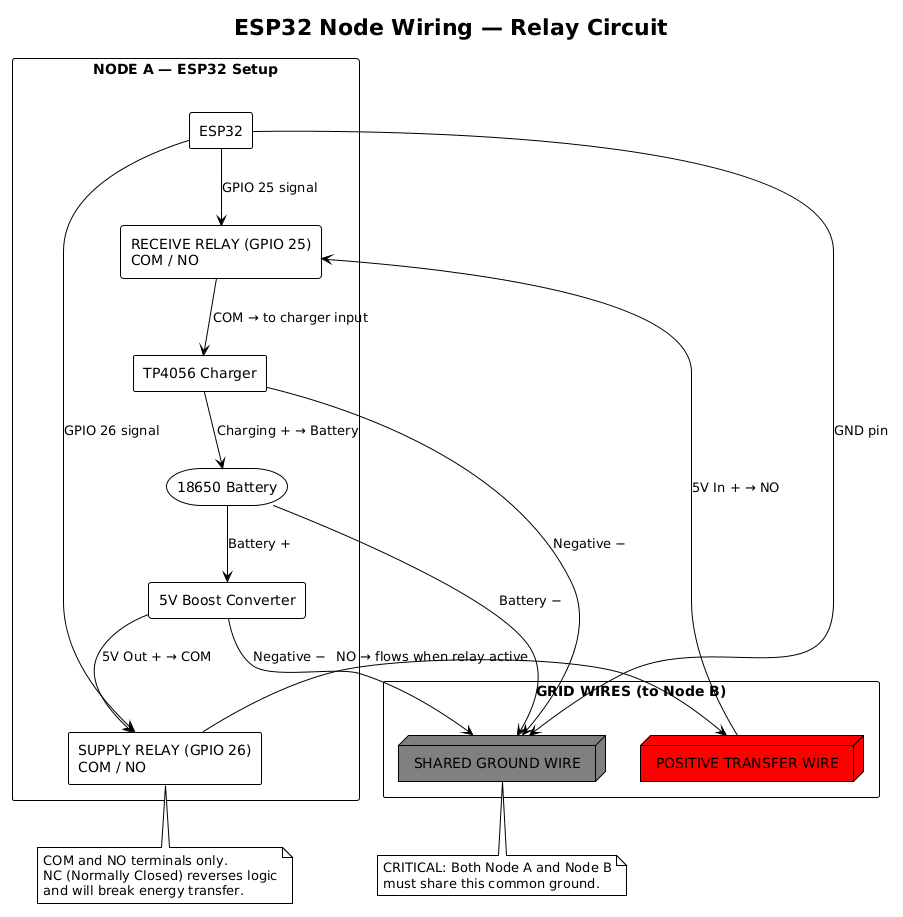

Physical Wiring

Critical wiring rules:

• Relays must use COM and NO (Normally Open) terminals — NC reverses logic
• Both nodes must share a common ground wire
• Absence of common ground will prevent any current flow regardless of relay state

---

Command Translation Protocol

The backend and Raspberry Pi speak in abstract commands (discharge, charge). The ESP32 understands a custom TCP Socket protocol with physical commands.

The Python script on the Pi (energy_grid_updated.py) performs the translation:

Backend / Scheduler Action	Transmitted to ESP32 via TCP	Physical Effect
discharge	SUPPLY	Opens GPIO 26 → relay activates boost converter → energy flows out
charge	RECEIVE	Opens GPIO 25 → relay activates TP4056 charger → energy flows in
idle (or none)	IDLE	All relays close — safe default state

---

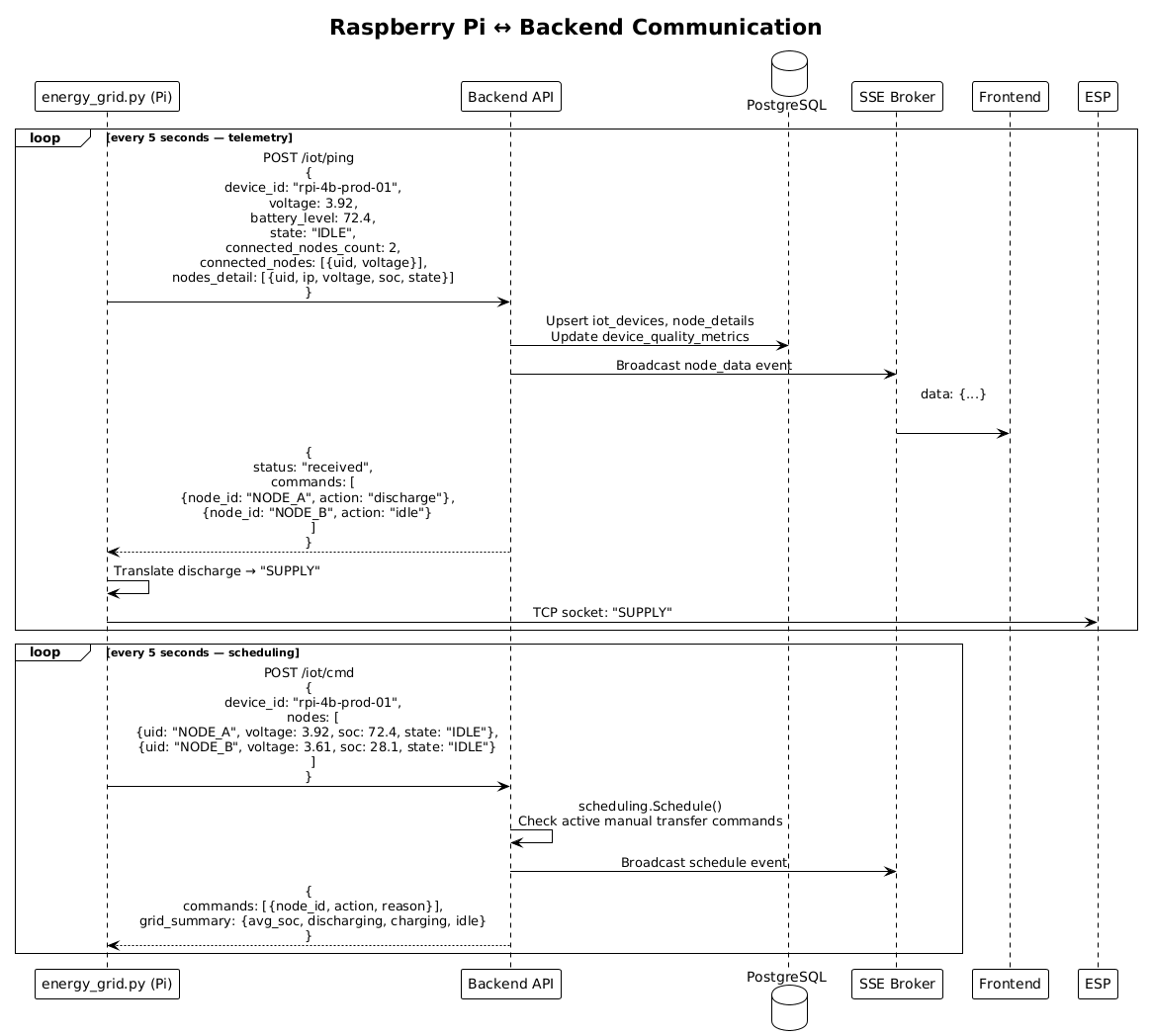

Raspberry Pi Communication Flow

---

IoT Ping Payload Schema

The Raspberry Pi sends two distinct payload types to POST /iot/ping:

Heartbeat (sent when Pi boots or reconnects):

{
  "device_id": "rpi-4b-prod-01",
  "status": "heartbeat"
}

Node data (sent every cycle with full telemetry):

{
  "device_id": "rpi-4b-prod-01",
  "voltage": 3.921,
  "battery_level": 72.4,
  "state": "IDLE",
  "source": "rpi_energy_grid",
  "timestamp": "2026-02-23T09:56:48Z",
  "connected_nodes_count": 2,
  "connected_nodes": [
    {"uid": "NODE_A", "voltage": 3.921},
    {"uid": "NODE_B", "voltage": 3.610}
  ],
  "nodes_detail": [
    {"uid": "NODE_A", "ip": "192.168.1.101", "voltage": 3.921, "soc": 72.4, "state": "IDLE"},
    {"uid": "NODE_B", "ip": "192.168.1.102", "voltage": 3.610, "soc": 28.1, "state": "IDLE"}
  ]
}

---

Voltage Stability Scoring

After each telemetry report, the backend computes a voltage stability score for the device's quality metrics:

avgVoltage = (primary_voltage + sum(node_voltages)) / count
deviation = |avgVoltage - 3.85|          # 3.85V is midpoint of 3.7–4.2V Li-ion range
score = 100 - (deviation / 0.35 × 100)
clamp(score, 0, 100)

This score feeds the seller quality factor (F_quality) in the pricing engine.

---

SSE Event Types

The backend broadcasts real-time events to any connected frontend client via GET /iot/events:

Event Type	When Fired	Payload
heartbeat	Pi sends heartbeat	{device_id, status}
node_data	Pi sends full telemetry	Full ping payload
schedule	Scheduler runs	{device_id, commands, grid_summary}
energy_mint	Pi reports energy transfer	{kwh_transferred, tokens_minted, co2_saved_kg, ...}

---

Energy Reporting: Physical to Token

When a physical energy transfer completes, the Pi reports it:

POST /iot/energy/report
{
  "device_id":        "rpi-4b-prod-01",
  "sender_uid":       "NODE_A",
  "receiver_uid":     "NODE_B",
  "kwh_transferred":  0.5,
  "duration_seconds": 1800,
  "avg_voltage":      3.92,
  "avg_current":      0.27
}

Backend processing:

1. Validate kWh in [0.001, 10.0] range
2. Check active discharge command exists for sender_uid
3. Calculate quality factor from avg_voltage
4. Compute: TokensMinted = kWh × 1000 × QualityFactor
5. Call energy_token.mint(sender, tokens) on Soroban
6. Record EnergyMint, auto-create sell order at current dynamic price
7. Record CarbonCredit (kWh × 0.82 kg/kWh)
8. Broadcast energy_mint SSE event

---

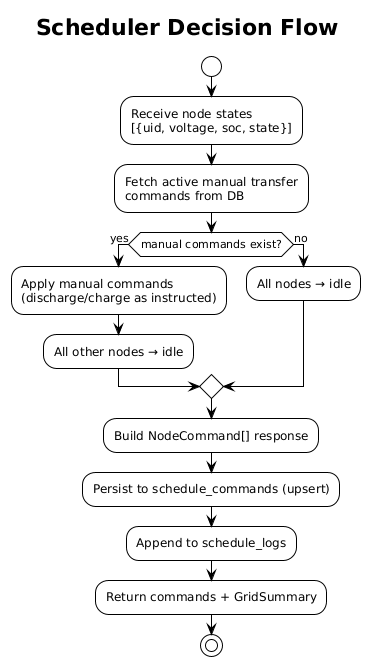

Grid Scheduler

The scheduler (scheduling.Schedule()) determines which nodes should discharge or charge, based on manual transfer commands from the frontend:

The auto-balance algorithm (ScheduleAuto) implements SoC-based pair matching but is not called in production — all transfers are initiated through the frontend's manual transfer interface.

SoC thresholds for auto-balance (reference):

Threshold	Value	Meaning
SoCCritical	20%	Node must receive charge
SoCLow	40%	Node should receive charge
SoCHigh	70%	Node can donate
SoCFull	90%	Node should donate
BalanceDeadband	10%	Spread below this → no action needed
MinTransferGap	15%	Minimum SoC gap between sender and receiver

---

DePIN Node Registry

Raspberry Pi hardware nodes can register in the DePIN (Decentralized Physical Infrastructure) registry:

POST /api/v1/depin/register
POST /api/v1/depin/heartbeat
GET  /api/v1/depin/nodes
GET  /api/v1/depin/stats

Reward structure:

Action	Reward
Initial registration	100 LT
24h uptime maintained	10 LT/day
Routing 1 kWh	1 LT
>90% monthly uptime	50 LT bonus

Reliability score:

ReliabilityPct = (TotalUptime / TimeSinceRegistration) × 100
